+# Cisco IPSec VPN tunnel
+
+Monitors the status of Cisco IPSec VPN tunnels. Tis is a complete rewrite of the original check
+
+Check Info:
+
+* *service*: this check creates on service vor eah IPSec VPN tunnel
+* *state*:
+    * **warning** if VPN tunnel has no IPSec infromation (missing phase 2))
+    * **unkown** if VPN tunnel missing
+* *wato*:
+    * you can configure the state for missing VPN tunnels and for missing IPSec information. This states can be configured globaly or per tunnel.
+    * you can configure an tunnel alias
+* *perfdata*:\
+    **IKE counter**
+    * IKE active time (s)
+    * IKE Bytes in (bytes/s)
+    * IKE Bytes out (byte/s)
+    * IKE packets in (/s)
+    * IKE packets out (/s)
+    * IKE packets dropped in (/s)
+    * IKE packets dropped out (/s)
+    * IKE in notifies (count)
+    * IKE out notifies (count)
+    * IKE in phase 2 exchanges (count)
+    * IKE out phase 2 exchanges (count)
+    * IKE in phase 2 exchanges invalid (count)
+    * IKE out phase 2 exchanges invalid (count)
+    * IKE in phase 2 exchanges rejected (count)
+    * IKE out phase 2 exchanges rejected (count)
+    * IKE in phase 2 SA delete requests (count)
+    * IKE out phase 2 SA delete requests (count)
+
+    **IPSec counter**
+    * IPSec active time (s)
+    * IPSec Bytes in (byte/s)
+    * IPSec Bytes out (byte/s)
+    * IPSec packets in (/s)
+    * IPSec packets out (/s)
+    * IPSec packets dropped in (/s)
+    * IPSec packets dropped out (/s)
+    * IPSec in decompressed octets (/s)
+    * IPSec out compressed octets (/s)
+    * IPSec in authentication\'s (count)
+    * IPSec out authentication\'s (count)
+    * IPSec in authentication\'s failed (count)
+    * IPSec out authentication\'s failed (count)
+    * IPSec in decryption\'s (count)
+    * IPSec out encryption\'s (count)
+    * IPSec in decryption\'s failed (count)
+    * IPSec out encryption\'s failed (count)
+    * IPSec in replay packets dropped (count)
+
+Sample output
+

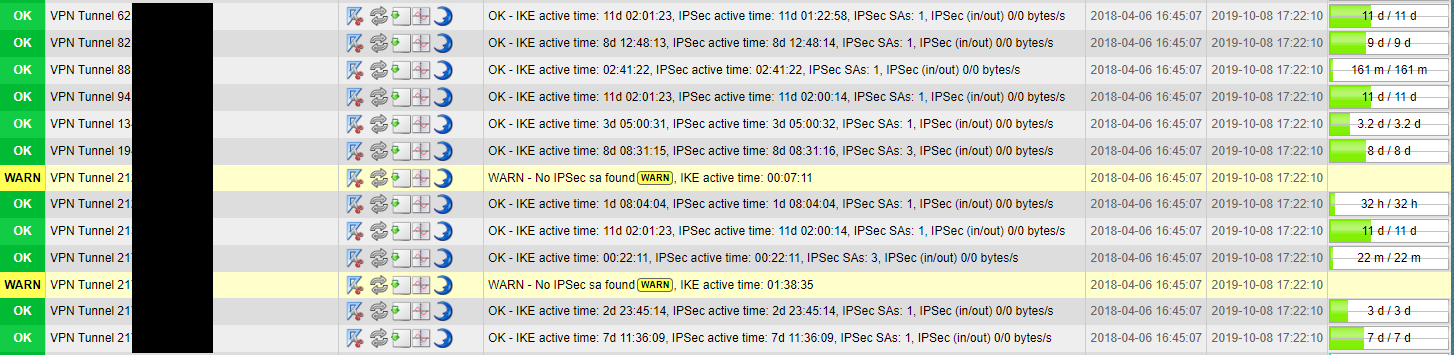

+![sample output](/doc/sample.png?raw=true "sample [SHORT TITLE]")

checks/cisco_vpn_tunnel

+#!/usr/bin/python
+# -*- encoding: utf-8; py-indent-offset: 4 -*-
+#
+#
+# Cisco VPN tunnel rewrite
+#
+# Author: Th.L.
+# Date  : 2017-12-28
+#
+# Monitor status of Cisco VPN tunnel phase 1 and 2
+#
+# 10.01.2018: Th.L.: added handling for tunnel not found
+# 23.01.2018: Th.L.: removed unnecessary counters
+# 15.02.2018: Th.L.: removed ipsec tunnel status, changed ike ipv4 check
+# 16.02.2018: Th.L.: readded tunnel alias
+# 11.07.2018: Th.L.: added parameter for missing IPSec SA, changed 'parsed' to use peer ip as index
+#
+# snmpwalk sample
+#
+#
+# {'state': 0, 'tunnels': [('192.168.1.2', u'tnnel-aliias', 1)]}
+factory_settings['vpn_tunnel_defaults'] = {
+    #  'state': 3,    # default state for tunnel not found
+    #  'tunnels': []  # list of tunnel specific not found states ('<ip-address>', '<alias>', <state>)
+}
+
+
+###########################################################################
+#
+#  DATA Parser function
+#
+###########################################################################
+
+
+def parse_cisco_vpn_tunnel(info):
+    ipsectunnelsummary = {}
+    vpntunnel = {}
+    cikeTunnelEntry, cipSecTunnelEntry = info
+
+    def cisco_vpn_tunnel_render_ipv4_address(bytestring):
+        return ".".join(["%s" % ord(m) for m in bytestring])
+
+    # summarize IPSec SAs, ASSUMPTION: except for counters all SA attributes are identical per IKE index
+    for entry in cipSecTunnelEntry:
+        if not saveint(entry[0]) == 0:
+            if int(entry[0]) in ipsectunnelsummary.keys():  # summarize IPSec SA values for IKE tunnel index
+                ipsecsa = ipsectunnelsummary.get(int(entry[0]))
+                ipsecsa.update({'ipsecsacount': ipsecsa.get('ipsecsacount') + 1})
+                ipsecsa.update({'cipSecTunHcInOctets': ipsecsa.get('cipSecTunHcInOctets') + int(entry[3])})
+                ipsecsa.update({'cipSecTunInPkts': ipsecsa.get('cipSecTunInPkts') + int(entry[4])})
+                ipsecsa.update({'cipSecTunInDropPkts': ipsecsa.get('cipSecTunInDropPkts') + int(entry[5])})
+                ipsecsa.update({'cipSecTunHcOutOctets': ipsecsa.get('cipSecTunHcOutOctets') + int(entry[6])})
+                ipsecsa.update({'cipSecTunOutPkts': ipsecsa.get('cipSecTunOutPkts') + int(entry[7])})
+                ipsecsa.update({'cipSecTunOutDropPkts': ipsecsa.get('cipSecTunOutDropPkts') + int(entry[8])})
+                if int(entry[2]) / 100 > ipsecsa.get('cipSecTunActiveTime'):
+                    ipsecsa.update({'cipSecTunActiveTime': int(entry[2]) / 100})
+
+            else:  # new IKE tunnel index
+                ipsecsa = {}
+                ipsecsa.update({'ipsecsacount': 1})
+                ipsecsa.update({'cipSecTunIkeTunnelAlive': entry[1]})
+                ipsecsa.update({'cipSecTunActiveTime': int(entry[2]) / 100})
+                ipsecsa.update({'cipSecTunHcInOctets': int(entry[3])})
+                ipsecsa.update({'cipSecTunInPkts': int(entry[4])})
+                ipsecsa.update({'cipSecTunInDropPkts': int(entry[5])})
+                ipsecsa.update({'cipSecTunHcOutOctets': int(entry[6])})
+                ipsecsa.update({'cipSecTunOutPkts': int(entry[7])})
+                ipsecsa.update({'cipSecTunOutDropPkts': int(entry[8])})
+
+                ipsectunnelsummary.update({int(entry[0]): ipsecsa})
+
+    # IKE tunnel index
+    for entry in cikeTunnelEntry:
+        tunnel = {}
+        if not saveint(entry[0]) == 0:
+            # if int(entry[17]) == 2:  # drop agressive mode tunnel, likely Remote Access
+                tunnel.update({'cikeTunRemoteAddr': cisco_vpn_tunnel_render_ipv4_address(entry[7])})
+                if len(tunnel.get('cikeTunRemoteAddr').split('.')) != 4:
+                    tunnel.update({'cikeTunRemoteAddr': entry[6]})  # IP address (hopefully)
+                if len(tunnel.get('cikeTunRemoteAddr').split('.')) == 4:
+                    tunnel.update({'cikeTunIndex':              int(entry[0])})
+                    tunnel.update({'cikeTunLocalType':          int (entry[1])})
+                    tunnel.update({'cikeTunLocalValue':         entry[2]})
+                    tunnel.update({'cikeTunLocalAddr':          cisco_vpn_tunnel_render_ipv4_address(entry[3])})
+                    tunnel.update({'cikeTunLocalName':          entry[4]})
+                    tunnel.update({'cikeTunRemoteType':         int(entry[5])})
+                    tunnel.update({'cikeTunRemoteValue':        entry[6]})
+
+                    tunnel.update({'cikeTunRemoteName':         entry[8]})
+                    tunnel.update({'cikeTunActiveTime':         int(entry[9]) / 100})
+                    tunnel.update({'cikeTunInOctets':           int(entry[10])})
+                    tunnel.update({'cikeTunInPkts':             int(entry[11])})
+                    tunnel.update({'cikeTunInDropPkts':         int(entry[12])})
+                    tunnel.update({'cikeTunOutOctets':          int(entry[13])})
+                    tunnel.update({'cikeTunOutPkts':            int(entry[14])})
+                    tunnel.update({'cikeTunOutDropPkts':        int(entry[15])})
+                    tunnel.update({'cikeTunStatus':             int(entry[16])})
+
+                    # add IPSec SA summary for IKE tunnel index
+                    tunnel.update({'ipsecsummary': ipsectunnelsummary.get(tunnel.get('cikeTunIndex'))})
+
+                    vpntunnel.update({tunnel.get('cikeTunRemoteAddr'):tunnel})
+    return vpntunnel
+
+###########################################################################
+#
+#  Inventory function
+#
+###########################################################################
+
+
+def inventory_cisco_vpn_tunnel(parsed):
+    for cikeTunRemoteAddr in parsed.keys():
+        yield cikeTunRemoteAddr, {}
+
+
+###########################################################################
+#
+#  Check function
+#
+###########################################################################
+
+
+def check_cisco_vpn_tunnel(item, params, parsed):
+    infotext = ''
+    longoutput = ''
+    alias = ''
+    tunnel_not_found_state = params.get('state', 3)
+    missing_ipsec_sa_state = params.get('missing_ipsec_sa_state', 1)
+    perfdata = []
+    state = 0
+
+    def ikepeertype(type):
+        name = {
+            1: 'ipAddrPeer',
+            2: 'namePeer',
+        }
+        if type in name.keys():
+            return name.get(type)
+        else:
+            return 'unknown (%s)' % type
+
+    def ikenegomode(mode):
+        name = {1: 'main',
+                2: 'aggressive',
+                3: 'IKEv2 main([3]?)'
+                }
+        if mode in name.keys():
+            return name.get(mode)
+        else:
+            return 'unknown (%s)' % mode
+
+    def diffhellmangrp(group):
+        name = {1: 'none',
+                2: 'DH1 (768bit)',
+                3: 'DH2 (1024bit)',
+                4: 'DH5 (1536bit) [4]?',
+                5: 'DH14 (2048bit)[5]?',
+                6: 'DH15 (3072bit) [6]?',
+                7: 'DH16 (4096bit) [7]?',
+                8: 'ECDH19 (256bit) [8]?',
+                9: 'ECDH20 (384bit) [9]?',
+                10: 'DH/DSA24 (2048bit) [10]?',
+                }
+        if group in name.keys():
+            return name.get(group)
+        else:
+            return 'unknown (%s)' % group
+
+    def encryptalgo(algo):
+        name = {1: 'none',
+                2: 'des',
+                3: 'des3',
+                4: 'aes-128 [4]?',
+                5: 'aes-192 [5]?',
+                6: 'aes-256 [6]?',
+                7: 'aes-gcm-128 [7]?',
+                8: 'aes-gcm-191 [8]?',
+                9: 'aes-gcm-256 [9]?',
+                }
+        if algo in name.keys():
+            return name.get(algo)
+        else:
+            return 'unknown (%s)' % algo
+
+    def ikehashalgo(algo):
+        name = {
+            1: 'none',
+            2: 'md5',
+            3: 'sha',
+            7: 'sha2-256 [7]?',
+            8: 'sha2-384 [8]?',
+            9: 'sha2-512 [9]?',
+
+        }
+        if algo in name.keys():
+            return name.get(algo)
+        else:
+            return 'unknown (%s)' % algo
+
+    def ikeauthmethod(method):
+        name = {
+            1: 'none',
+            2: 'preSharedKey',
+            3: 'rsaSig',
+            4: 'rsaEncrypt',
+            5: 'revPublicKey',
+        }
+        if method in name.keys():
+            return name.get(method)
+        else:
+            return 'unknown (%s)' % method
+
+    def tunnelstatus(status):
+        name = {
+            1: 'active',
+            2: 'destroy',
+        }
+        if status in name.keys():
+            return name.get(status)
+        else:
+            return 'unknown (%s)' % status
+
+    def ipsec_keytype(type):
+        name = {
+            1: 'ike',
+            2: 'manual',
+        }
+        if type in name.keys():
+            return name.get(type)
+        else:
+            return 'unknown (%s)' % type
+
+    def ipsec_encapmode(mode):
+        name = {
+            1: 'tunnel',
+            2: 'transport',
+        }
+        if mode in name.keys():
+            return name.get(mode)
+        else:
+            return 'unknown (%s)' % mode
+
+    def ipsec_authalgo(algo):
+        name = {
+            1: 'none',
+            2: 'hmacMd5',
+            3: 'hmacSha',
+        }
+        if algo in name.keys():
+            return name.get(algo)
+        else:
+            return 'unknown (%s)' % algo
+
+    def ipsec_compalgo(algo):
+        name = {
+            1: 'none',
+            2: 'ldf',
+        }
+        if algo in name.keys():
+            return name.get(algo)
+        else:
+            return 'unknown (%s)' % algo
+
+    def cisco_vpn_tunnel_time(uptime):  # expects time in seconds
+        m, s = divmod(uptime, 60)  # break in seconds / minutes
+        h, m = divmod(m, 60)  # break in mintes / hours
+        if h >= 24:  # more then one day
+            d, h = divmod(h, 24)  # break in hours / days
+        else:
+            return '%02d:%02d:%02d' % (h, m, s)
+        if d >= 365:  # more the one year
+            y, d = divmod(d, 365)  # break in days / years
+            return '%dy %dd %02d:%02d:%02d' % (y, d, h, m, s)
+        else:
+            return '%dd %02d:%02d:%02d' % (d, h, m, s)
+
+    for tunnel_ip, tunnel_alias, not_found_state, ipsec_sa_state in params.get('tunnels', []):
+        if item == tunnel_ip:
+            alias = tunnel_alias
+            tunnel_not_found_state = not_found_state
+            missing_ipsec_sa_state = ipsec_sa_state
+
+    if item in parsed.keys():
+        tunnel = parsed.get(item)
+
+        if item == tunnel.get('cikeTunRemoteAddr'):
+            state = 0
+
+            ipsecsummary = tunnel.get('ipsecsummary')
+
+            if alias != '':
+                infotext = 'Alias: %s: ' % alias
+
+            infotext += 'IKE active time: %s' % (cisco_vpn_tunnel_time(tunnel.get('cikeTunActiveTime')))
+
+            now_time = time.time()
+            # convert to octets/packets per second
+            tunnel.update({'cikeTunInOctets'  : get_rate('cisco_vpn_tunnel.%s.%s'  % ('cikeTunInOctets',    item), now_time, tunnel.get('cikeTunInOctets'),    onwrap=SKIP)})
+            tunnel.update({'cikeTunOutOctets' : get_rate('cisco_vpn_tunnel.%s.%s'  % ('cikeTunOutOctets',   item), now_time, tunnel.get('cikeTunInPkts'),      onwrap=SKIP)})
+            tunnel.update({'cikeTunInPkts'    : get_rate('cisco_vpn_tunnel.%s.%s'  % ('cikeTunInPkts',      item), now_time, tunnel.get('cikeTunOutOctets'),   onwrap=SKIP)})
+            tunnel.update({'cikeTunOutPkts'   : get_rate('cisco_vpn_tunnel.%s.%s'  % ('cikeTunOutPkts',     item), now_time, tunnel.get('cikeTunOutPkts'),     onwrap=SKIP)})
+            tunnel.update({'cikeTunInDropPkts' : get_rate('cisco_vpn_tunnel.%s.%s' % ('cikeTunInDropPkts',  item), now_time, tunnel.get('cikeTunInDropPkts'),  onwrap=SKIP)})
+            tunnel.update({'cikeTunOutDropPkts': get_rate('cisco_vpn_tunnel.%s.%s' % ('cikeTunOutDropPkts', item), now_time, tunnel.get('cikeTunOutDropPkts'), onwrap=SKIP)})
+
+            longoutput += '\nIKE Status            : %s' % tunnelstatus(tunnel.get('cikeTunStatus'))
+            longoutput += '\nTunnel address local  : %s' % tunnel.get('cikeTunLocalAddr')
+            longoutput += '\nTunnel address remote : %s' % tunnel.get('cikeTunRemoteAddr')
+
+            # 'unit', <value>, <warn-at>, <crit-at>, <min value>, <max value>
+            perfdata.append(('cikeTunInOctets', tunnel.get('cikeTunInOctets')))
+            perfdata.append(('cikeTunOutOctets', tunnel.get('cikeTunOutOctets')))
+            perfdata.append(('cikeTunInPkts', tunnel.get('cikeTunInPkts')))
+            perfdata.append(('cikeTunOutPkts', tunnel.get('cikeTunOutPkts')))
+            perfdata.append(('cikeTunInDropPkts', tunnel.get('cikeTunInDropPkts')))
+            perfdata.append(('cikeTunOutDropPkts', tunnel.get('cikeTunOutDropPkts')))
+            perfdata.append(('cikeTunActiveTime', tunnel.get('cikeTunActiveTime')))
+
+            if not ipsecsummary == None:
+                # convert to octets/packets per second
+                ipsecsummary.update({'cipSecTunHcInOctets': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunHcInOctets', item), now_time, ipsecsummary.get('cipSecTunHcInOctets'), onwrap=SKIP)})
+                ipsecsummary.update({'cipSecTunHcOutOctets': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunHcOutOctets', item), now_time, ipsecsummary.get('cipSecTunHcOutOctets'), onwrap=SKIP)})
+                ipsecsummary.update({'cipSecTunInPkts': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunInPkts', item), now_time, ipsecsummary.get('cipSecTunInPkts'), onwrap=SKIP)})
+                ipsecsummary.update({'cipSecTunOutPkts': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunOutPkts', item), now_time, ipsecsummary.get('cipSecTunOutPkts'), onwrap=SKIP)})
+                ipsecsummary.update({'cipSecTunInDropPkts': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunInDropPkts', item), now_time, ipsecsummary.get('cipSecTunInDropPkts'), onwrap=SKIP)})
+                ipsecsummary.update({'cipSecTunOutDropPkts': get_rate('cisco_vpn_tunnel.%s.%s' % ('cipSecTunOutDropPkts', item), now_time, ipsecsummary.get('cipSecTunOutDropPkts'), onwrap=SKIP)})
+
+                infotext += ', IPSec active time: %s, IPSec SAs: %s, IPSec (in/out) %01.0d/%01.0d bytes/s' \
+                            % (cisco_vpn_tunnel_time(ipsecsummary.get('cipSecTunActiveTime')),
+                               ipsecsummary.get('ipsecsacount'),
+                               ipsecsummary.get('cipSecTunHcInOctets'),
+                               ipsecsummary.get('cipSecTunHcOutOctets'))
+
+                # 'unit', <value>, <warn-at>, <crit-at>, <min value>, <max value>
+                perfdata.append(('cipSecTunHcInOctets', ipsecsummary.get('cipSecTunHcInOctets')))
+                perfdata.append(('cipSecTunHcOutOctets', ipsecsummary.get('cipSecTunHcOutOctets')))
+                perfdata.append(('cipSecTunInPkts', ipsecsummary.get('cipSecTunInPkts')))
+                perfdata.append(('cipSecTunOutPkts', ipsecsummary.get('cipSecTunOutPkts')))
+                perfdata.append(('cipSecTunInDropPkts', ipsecsummary.get('cipSecTunInDropPkts')))
+                perfdata.append(('cipSecTunOutDropPkts', ipsecsummary.get('cipSecTunOutDropPkts')))
+                perfdata.append(('cipSecTunActiveTime', ipsecsummary.get('cipSecTunActiveTime')))
+
+            else:
+                yield missing_ipsec_sa_state, 'No IPSec sa found'
+
+    # tunnel not found
+    else:
+        yield tunnel_not_found_state, 'VPN Tunnel %s not found' % alias
+        state = tunnel_not_found_state
+
+    yield state, infotext + longoutput, perfdata
+
+###########################################################################
+#
+#  Check info
+#
+###########################################################################
+
+
+check_info['cisco_vpn_tunnel'] = {
+    'check_function'          : check_cisco_vpn_tunnel,
+    'inventory_function'     : inventory_cisco_vpn_tunnel,
+    'service_description'    : 'VPN Tunnel %s',
+    'group'                  : 'vpn_tunnel',
+    'default_levels_variable': 'vpn_tunnel_defaults',
+    'has_perfdata'           : True,
+    'parse_function'         : parse_cisco_vpn_tunnel,
+    'snmp_scan_function'     : lambda oid: oid('.1.3.6.1.2.1.1.1.0').lower().find('cisco') != -1 and
+                                           oid('.1.3.6.1.4.1.9.9.171.1.2.3.1.*'),  # CISCO-IPSEC-FLOW-MONITOR-MIB::cikeTunnelEntry
+    'snmp_info'              : [
+        ('.1.3.6.1.4.1.9.9.171.1.2.3.1', [
+            OID_END,  # TunnelIndex        (0)
+            '2',      # cikeTunLocalType   (1)
+            '3',      # cikeTunLocalValue  (2)
+            '4',      # cikeTunLocalAddr   (3)
+            '5',      # cikeTunLocalName   (4)
+            '6',      # cikeTunRemoteType  (5)
+            '7',      # cikeTunRemoteValue (6)
+            '8',      # cikeTunRemoteAddr  (7)
+            '9',      # cikeTunRemoteName  (8)
+            '16',     # cikeTunActiveTime  (9)
+            '19',     # cikeTunInOctets    (10)
+            '20',     # cikeTunInPkts      (11)
+            '21',     # cikeTunInDropPkts  (12)
+            '27',     # cikeTunOutOctets   (13)
+            '28',     # cikeTunOutPkts     (14)
+            '29',     # cikeTunOutDropPkts (15)
+            '35',     # cikeTunStatus      (16)
+            '10',     # cikeTunNegoMode    (17)
+        ]),
+        ('.1.3.6.1.4.1.9.9.171.1.3.2.1', [  # CISCO-IPSEC-FLOW-MONITOR-MIB::cipSecTunnelEntry
+            '2',   # cipSecTunIkeTunnelIndex  (0)
+            '3',   # cipSecTunIkeTunnelAlive  (1)
+            '10',  # cipSecTunActiveTime      (2)
+            '27',  # cipSecTunHcInOctets      (3)
+            '32',  # cipSecTunInPkts          (4)
+            '33',  # cipSecTunInDropPkts      (5)
+            '40',  # cipSecTunHcOutOctets     (6)
+            '45',  # cipSecTunOutPkts         (7)
+            '46',  # cipSecTunOutDropPkts     (8)
+        ]),
+    ],
+}

packages/cisco_vpn_tunnel

+{'author': u'Th.L. (thl-cmk[at]outlook[dot]com)',
+ 'description': u'Monitors Cisco VPN Tunnel. Complete rewrite of the original check.\nCreates one service for each VPN Tunnel.\nperfdata contains: IKE and IPSec statistics for uptime, in/out octets and packets.\n',
+ 'download_url': 'https://thl-cmk.hopto.org',
+ 'files': {'checks': ['cisco_vpn_tunnel'],
+           'web': ['plugins/metrics/cisco_vpn_tunnel.py',
+                   'plugins/wato/cisco_vpn_tunnel.py']},
+ 'name': 'cisco_vpn_tunnel',
+ 'num_files': 3,
+ 'title': u'Monitor Cisco VPN Tunnel',
+ 'version': '20180806v.0.1g',
+ 'version.min_required': '1.2.8b8',
+ 'version.packaged': '1.4.0p35'}
\ No newline at end of file

web/plugins/metrics/cisco_vpn_tunnel.py

+#!/usr/bin/python
+# -*- encoding: utf-8; py-indent-offset: 4 -*-
+#
+# Cisco VPN Tunnel metrics plugin
+#
+# Author: Th.L.
+# Date  : 2017-12-29
+#
+
+# key a       green      11/a       21/a       31/a       41/a       12/a       22/a       32/a       42/a
+colors_a = ['#80F000', '#a500ff', '#ffc600', '#00ffb2', '#0075ff', '#cc00ff', '#ffd600', '#00ffff', '#0047ff',
+            # 13/a       23/a       33/a       43/a       14/a       24/a       34/a       44/a       15/a
+            '#f900ff', '#ffed00', '#00e8ff', '#000aff', '#ff4c00', '#e2ff00', '#00d1ff', '#4200ff', '#ff7a00',
+            # 25/a       35/a       45/a       16/a       26/a       36/a       46/a       51/a       52/a
+            '#bcff00', '#00b2ff', '#6000ff', '#ffa000', '#7fff00', '#0093ff', '#7f00ff', '#7f7f7f', '#7f4a26',
+            # 53/a
+            '#8c531c']
+# key b       green      11/b       21/b       31/b       41/b       12/b       22/b       32/b       42/b
+colors_b = ['#80F000', '#c966ff', '#cc9f00', '#00cc8e', '#66acff', '#e066ff', '#ccab00', '#00cccc', '#6690ff',
+            # 13/b       23/b       33/b       43/b       14/b       24/b       34/b       44/b       15/b
+            '#fb66ff', '#ccbd00', '#00b9cc', '#666cff', '#ff9366', '#b5cc00', '#00a7cc', '#8d66ff', '#ffaf66',
+            # 25/b       35/b       45/b       16/b       26/b       36/b       46/b       51/b       52/b
+            '#96cc00', '#008ecc', '#a066ff', '#ffc666', '#66cc00', '#0076cc', '#b266ff', '#7f7f7f', '#7f5f49',
+            # 53/b
+            '#8c6a48']
+
+
+def cisco_vpn_tunnel_render_uptime(uptime):  # expects time in seconds
+    m, s = divmod(uptime, 60)   # break in seconds / minutes
+    h, m = divmod(m, 60)        # break in mintes / hours
+    if h >= 24:                 # more then one day
+        d, h = divmod(h, 24)    # break in hours / days
+    else:
+        return '%02d:%02d:%02d' % (h, m, s)
+    if d >= 365:                # more the one year
+        y, d = divmod(d, 365)   # break in days / years
+        return '%dy %dd %02d:%02d:%02d' % (y, d, h, m, s)
+    else:
+        return '%dd %02d:%02d:%02d' % (d, h, m, s)
+
+#####################################################################################################################
+#
+# define units for cisco_vpm_tunnel perfdata
+#
+#####################################################################################################################
+
+
+unit_info['active_time'] = {
+    'title': _('Last update'),
+    'description': _('SA active time'),
+    'symbol': _(''),
+    'render': lambda v: cisco_vpn_tunnel_render_uptime(v),
+    'stepping': 'time',  # for vertical graph labels
+}
+
+
+#####################################################################################################################
+#
+# define metrics for bgp peer perfdata
+#
+#####################################################################################################################
+
+
+metric_info['cisco_vpn_tunnel_cikeTunActiveTime'] = {
+    'title': _('IKE active time'),
+    'help': _(''),
+    #'unit': 'active_time',
+    'unit': 's',
+    'color': colors_a[0],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInOctets'] = {
+    'title': _('IKE Bytes in'),
+    'unit': 'bytes/s',
+    'color': colors_a[1],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutOctets'] = {
+    'title': _('IKE Bytes out'),
+    'help': _(''),
+    'unit': 'bytes/s',
+    'color': colors_a[2],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInPkts'] = {
+    'title': _('IKE packets in'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_a[3],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutPkts'] = {
+    'title': _('IKE packets out'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_a[4],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInDropPkts'] = {
+    'title': _('IKE packets dropped in'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_a[5],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutDropPkts'] = {
+    'title': _('IKE packets dropped out'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_a[6],
+}
+
+metric_info['cisco_vpn_tunnel_cikeTunInNotifys'] = {
+    'title': _('IKE in notifies'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[7],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutNotifys'] = {
+    'title': _('IKE out notifies'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[8],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInP2Exchgs'] = {
+    'title': _('IKE in phase 2 exchanges'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[9],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutP2Exchgs'] = {
+    'title': _('IKE out phase 2 exchanges'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[10],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInP2ExchgInvalids'] = {
+    'title': _('IKE in phase 2 exchanges invalid'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[11],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutP2ExchgInvalids'] = {
+    'title': _('IKE out phase 2 exchanges invalid'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[12],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInP2ExchgRejects'] = {
+    'title': _('IKE in phase 2 exchanges rejected'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[13],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutP2ExchgRejects'] = {
+    'title': _('IKE out phase 2 exchanges rejected'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[14],
+}
+metric_info['cisco_vpn_tunnel_cikeTunInP2SaDelRequests'] = {
+    'title': _('IKE in phase 2 SA delete requests'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[15],
+}
+metric_info['cisco_vpn_tunnel_cikeTunOutP2SaDelRequests'] = {
+    'title': _('IKE out phase 2 SA delete requests'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_a[16],
+}
+
+
+# IPSec counter
+
+metric_info['cisco_vpn_tunnel_cipSecTunActiveTime'] = {
+    'title': _('IPSec active time'),
+    'help': _(''),
+    'unit': 's',
+    'color': colors_b[0],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunHcInOctets'] = {
+    'title': _('IPSec Bytes in'),
+    'help': _(''),
+    'unit': 'bytes/s',
+    'color': colors_b[1],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunHcOutOctets'] = {
+    'title': _('IPSec Bytes out'),
+    'help': _(''),
+    'unit': 'bytes/s',
+    'color': colors_b[2],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInPkts'] = {
+    'title': _('IPSec packets in'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[3],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutPkts'] = {
+    'title': _('IPSec packets out'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[4],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInDropPkts'] = {
+    'title': _('IPSec packets dropped in'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[5],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutDropPkts'] = {
+    'title': _('IPSec packets dropped out'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[6],
+}
+
+metric_info['cisco_vpn_tunnel_cipSecTunHcInDecompOctets'] = {
+    'title': _('IPSec in decompressed octets'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[7],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunHcOutUncompOctets'] = {
+    'title': _('IPSec out compressed octets'),
+    'help': _(''),
+    'unit': '1/s',
+    'color': colors_b[8],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInAuths'] = {
+    'title': _('IPSec in authentication\'s'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[9],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutAuths'] = {
+    'title': _('IPSec out authentication\'s'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[10],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInAuthFails'] = {
+    'title': _('IPSec in authentication\'s failed'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[11],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutAuthFails'] = {
+    'title': _('IPSec out authentication\'s failed'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[12],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInDecrypts'] = {
+    'title': _('IPSec in decryption\'s'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[13],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutEncrypts'] = {
+    'title': _('IPSec out encryption\'s'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[14],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInDecryptFails'] = {
+    'title': _('IPSec in decryption\'s failed'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[15],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunOutEncryptFails'] = {
+    'title': _('IPSec out encryption\'s failed'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[16],
+}
+metric_info['cisco_vpn_tunnel_cipSecTunInReplayDropPkts'] = {
+    'title': _('IPSec in replay packets dropped'),
+    'help': _(''),
+    'unit': 'count',
+    'color': colors_b[17],
+}
+
+
+######################################################################################################################
+#
+# map bgp peer perfdata to metric, not really necessary but makes sure to use the right metrics
+#
+######################################################################################################################
+
+
+check_metrics['check_mk-cisco_vpn_tunnel'] = {
+    'cikeTunInOctets': {'name': 'cisco_vpn_tunnel_cikeTunInOctets'},
+    'cikeTunOutOctets': {'name': 'cisco_vpn_tunnel_cikeTunOutOctets'},
+    'cikeTunInPkts': {'name': 'cisco_vpn_tunnel_cikeTunInPkts'},
+    'cikeTunOutPkts': {'name': 'cisco_vpn_tunnel_cikeTunOutPkts'},
+    'cikeTunInDropPkts': {'name': 'cisco_vpn_tunnel_cikeTunInDropPkts'},
+    'cikeTunOutDropPkts': {'name': 'cisco_vpn_tunnel_cikeTunOutDropPkts'},
+    'cikeTunInNotifys': {'name': 'cisco_vpn_tunnel_cikeTunInNotifys'},
+    'cikeTunOutNotifys': {'name': 'cisco_vpn_tunnel_cikeTunOutNotifys'},
+    'cikeTunInP2Exchgs': {'name': 'cisco_vpn_tunnel_cikeTunInP2Exchgs', 'auto_graph' : False},
+    'cikeTunOutP2Exchgs': {'name': 'cisco_vpn_tunnel_cikeTunOutP2Exchgs'},
+    'cikeTunInP2ExchgInvalids': {'name': 'cisco_vpn_tunnel_cikeTunInP2ExchgInvalids'},
+    'cikeTunOutP2ExchgInvalids': {'name': 'cisco_vpn_tunnel_cikeTunOutP2ExchgInvalids'},
+    'cikeTunInP2ExchgRejects': {'name': 'cisco_vpn_tunnel_cikeTunInP2ExchgRejects'},
+    'cikeTunOutP2ExchgRejects': {'name': 'cisco_vpn_tunnel_cikeTunOutP2ExchgRejects'},
+    'cikeTunInP2SaDelRequests': {'name': 'cisco_vpn_tunnel_cikeTunInP2SaDelRequests'},
+    'cikeTunOutP2SaDelRequests': {'name': 'cisco_vpn_tunnel_cikeTunOutP2SaDelRequests'},
+    'cikeTunActiveTime': {'name': 'cisco_vpn_tunnel_cikeTunActiveTime'},
+
+    'cipSecTunHcInOctets': {'name': 'cisco_vpn_tunnel_cipSecTunHcInOctets'},
+    'cipSecTunHcOutOctets': {'name': 'cisco_vpn_tunnel_cipSecTunHcOutOctets'},
+    'cipSecTunHcInDecompOctets': {'name': 'cisco_vpn_tunnel_cipSecTunHcInDecompOctets'},
+    'cipSecTunHcOutUncompOctets': {'name': 'cisco_vpn_tunnel_cipSecTunHcOutUncompOctets'},
+    'cipSecTunInPkts': {'name': 'cisco_vpn_tunnel_cipSecTunInPkts'},
+    'cipSecTunOutPkts': {'name': 'cisco_vpn_tunnel_cipSecTunOutPkts'},
+    'cipSecTunInDropPkts': {'name': 'cisco_vpn_tunnel_cipSecTunInDropPkts'},
+    'cipSecTunOutDropPkts': {'name': 'cisco_vpn_tunnel_cipSecTunOutDropPkts'},
+    'cipSecTunInAuths': {'name': 'cisco_vpn_tunnel_cipSecTunInAuths'},
+    'cipSecTunOutAuths': {'name': 'cisco_vpn_tunnel_cipSecTunOutAuths'},
+    'cipSecTunInAuthFails': {'name': 'cisco_vpn_tunnel_cipSecTunInAuthFails'},
+    'cipSecTunOutAuthFails': {'name': 'cisco_vpn_tunnel_cipSecTunOutAuthFails'},
+    'cipSecTunInDecrypts': {'name': 'cisco_vpn_tunnel_cipSecTunInDecrypts'},
+    'cipSecTunOutEncrypts': {'name': 'cisco_vpn_tunnel_cipSecTunOutEncrypts'},
+    'cipSecTunInDecryptFails': {'name': 'cisco_vpn_tunnel_cipSecTunInDecryptFails'},
+    'cipSecTunOutEncryptFails': {'name': 'cisco_vpn_tunnel_cipSecTunOutEncryptFails'},
+    'cipSecTunInReplayDropPkts': {'name': 'cisco_vpn_tunnel_cipSecTunInReplayDropPkts'},
+    'cipSecTunActiveTime': {'name': 'cisco_vpn_tunnel_cipSecTunActiveTime'},
+
+}
+
+######################################################################################################################
+#
+# how to graph perdata for cisco_vpn_tunnel
+#
+######################################################################################################################
+
+
+graph_info.append({
+    'title': _('IKE active time'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cikeTunActiveTime', 'area'),
+    ],
+})
+graph_info.append({
+    'title': _('IKE Bytes/s'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cikeTunOutOctets', '-area'),
+        ('cisco_vpn_tunnel_cikeTunInOctets', 'area'),
+    ],
+})
+graph_info.append({
+    'title': _('IKE packets/s'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cikeTunOutDropPkts', '-line'),
+        ('cisco_vpn_tunnel_cikeTunInDropPkts', 'line'),
+        ('cisco_vpn_tunnel_cikeTunOutPkts', '-line'),
+        ('cisco_vpn_tunnel_cikeTunInPkts', 'line'),
+    ],
+})
+
+# graph_info.append({
+#     'title': _('IKE in data'),
+#     'metrics': [
+#         ('cisco_vpn_tunnel_cikeTunInNotifys', 'line'),
+# #        ('cisco_vpn_tunnel_cikeTunInP2Exchgs', 'line'),
+#         ('cisco_vpn_tunnel_cikeTunInP2ExchgInvalids', 'line'),
+#         ('cisco_vpn_tunnel_cikeTunInP2ExchgRejects', 'line'),
+#         ('cisco_vpn_tunnel_cikeTunInP2SaDelRequests', 'line'),
+#     ],
+# })
+#
+# graph_info.append({
+#     'title': _('IKE out data'),
+#     'metrics': [
+#
+#         ('cisco_vpn_tunnel_cikeTunOutNotifys', '-line'),
+# #        ('cisco_vpn_tunnel_cikeTunOutP2Exchgs', '-line'),
+#         ('cisco_vpn_tunnel_cikeTunOutP2ExchgInvalids', '-line'),
+#         ('cisco_vpn_tunnel_cikeTunOutP2ExchgRejects', '-line'),
+#         ('cisco_vpn_tunnel_cikeTunOutP2SaDelRequests', '-line'),
+#     ],
+# })
+
+graph_info.append({
+    'title': _('IPSec active time'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cipSecTunActiveTime', 'area'),
+    ],
+})
+graph_info.append({
+    'title': _('IPSec Bytes/s'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cipSecTunHcOutOctets', '-area'),
+        ('cisco_vpn_tunnel_cipSecTunHcInOctets', 'area'),
+    ],
+})
+graph_info.append({
+    'title': _('IPSec packets/s'),
+    'metrics': [
+        ('cisco_vpn_tunnel_cipSecTunOutDropPkts', '-stack'),
+        ('cisco_vpn_tunnel_cipSecTunInDropPkts', 'stack'),
+        ('cisco_vpn_tunnel_cipSecTunOutPkts', '-stack'),
+        ('cisco_vpn_tunnel_cipSecTunInPkts', 'stack'),
+    ],
+})
+
+# graph_info.append({
+#     'title': _('IPSec in data'),
+#     'metrics': [
+# #        ('cisco_vpn_tunnel_cipSecTunHcInDecompOctets', 'line'),
+# #        ('cisco_vpn_tunnel_cipSecTunInAuths', 'line'),
+#         ('cisco_vpn_tunnel_cipSecTunInAuthFails', 'line'),
+# #        ('cisco_vpn_tunnel_cipSecTunInDecrypts', 'line'),
+#         ('cisco_vpn_tunnel_cipSecTunInDecryptFails', 'line'),
+#         ('cisco_vpn_tunnel_cipSecTunInReplayDropPkts', 'line'),
+#     ],
+# })
+#
+# graph_info.append({
+#     'title': _('IPSec out data'),
+#     'metrics': [
+# #        ('cisco_vpn_tunnel_cipSecTunHcOutUncompOctets', '-line'),
+# #        ('cisco_vpn_tunnel_cipSecTunOutAuths', '-line'),
+#         ('cisco_vpn_tunnel_cipSecTunOutAuthFails', '-line'),
+# #        ('cisco_vpn_tunnel_cipSecTunOutEncrypts', '-line'),
+#         ('cisco_vpn_tunnel_cipSecTunOutEncryptFails', '-line'),
+#     ],
+# })
+
+
+######################################################################################################################
+#
+# define perf-o-meter for cisco_vpn_tunnel uptime active time
+#
+######################################################################################################################
+
+perfometer_info.append(('stacked', [
+    {
+        'type': 'logarithmic',
+        'metric': 'cisco_vpn_tunnel_cikeTunActiveTime',
+        'half_value': 2592000.0,
+        'exponent': 2,
+    },
+    {
+        'type': 'logarithmic',
+        'metric': 'cisco_vpn_tunnel_cipSecTunActiveTime',
+        'half_value': 2592000.0,
+        'exponent': 2,
+    },
+]))

web/plugins/wato/cisco_vpn_tunnel.py

+#!/usr/bin/python
+# -*- encoding: utf-8; py-indent-offset: 4 -*-
+
+register_check_parameters(
+    subgroup_networking,
+    'vpn_tunnel',
+    _('VPN Tunnel'),
+    Dictionary(
+        elements=[
+            ('tunnels',
+             ListOf(
+                 Tuple(
+                     title=('VPN Tunnel Endpoints'),
+                     elements=[
+                         IPv4Address(
+                             title=_('Peer IP-Address'),
+                             help=_('The configured value must match a tunnel reported by the monitored '
+                                    'device.'),
+                             allow_empty=False,
+                         ),
+                         TextUnicode(
+                             title=_('Tunnel Alias'),
+                             help=_('You can configure an individual alias here for the tunnel matching '
+                                    'the IP-Address or Name configured in the field above.'),
+                         ),
+                         MonitoringState(
+                             default_value=2,
+                             title=_('State if tunnel is not found'),
+                         ),
+                         MonitoringState(
+                             default_value=2,
+                             title=_('State if tunnel has no active IPSec SA'),
+                         ),
+                     ]),
+                 add_label=_('Add tunnel'),
+                 movable=False,
+                 title=_('VPN tunnel specific configuration'),
+             )),
+            ('state',
+             MonitoringState(
+                 title=_('Default state to report when tunnel can not be found anymore'),
+                 help=_('Default state if a tunnel, which is not listed above in this rule, '
+                        'can no longer be found.'),
+                 default_value=3,
+             ),
+             ),
+            ('missing_ipsec_sa_state',
+             MonitoringState(
+                 title=_('Default state to report when tunnel has no active IPSec SA'),
+                 help=_('Default state if a tunnel, which is not listed above in this rule, '
+                        'has no active IPSec SA.'),
+                 default_value=1,
+             ),
+             ),
+        ],
+    ),
+    TextAscii(title=_('IP-Address of Tunnel Endpoint')),
+    match_type='dict',
+)
