+# Check Point connections
+
+Monitors the connections thru a Check Point gateway
+
+Check Info:
+
+* *service*: this check will create the service *Connections*
+* *state*: **critical**/**warning** if the number of connections outside the configured levels
+* *wato*: none
+* *perfdata*:
+    * TCP connections/s
+    * UDP connections/s
+    * ICMP connections/s
+    * Other connections/s
+    * Total connections/s
+    * Connections rate/s
+    * Current connections
+    * Peak Connections
+

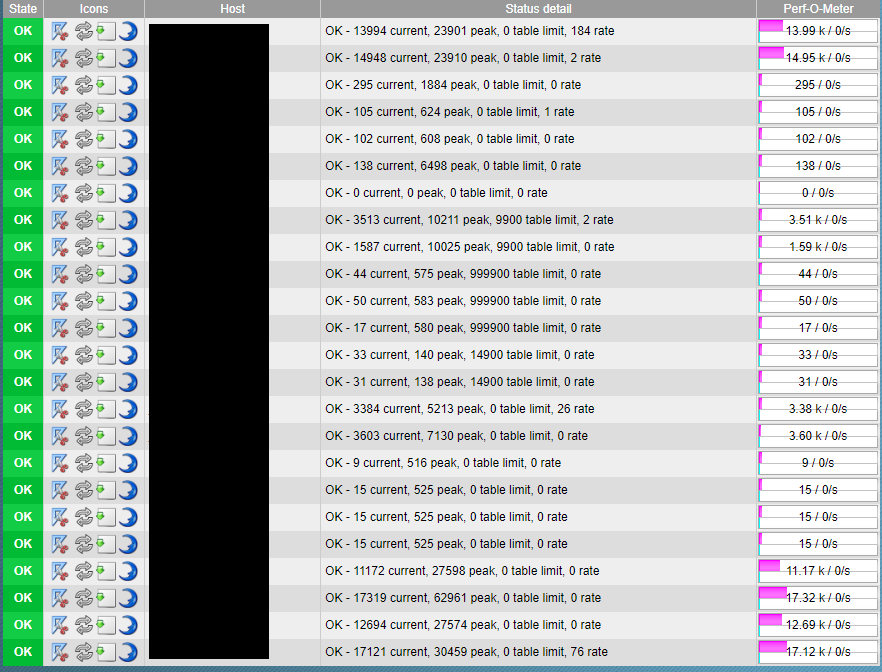

+Sample output
+
+![sample output](/doc/sample.png?raw=true "sample [SHORT TITLE]")

checks/checkpoint_connections

+#!/usr/bin/python
+# -*- encoding: utf-8; py-indent-offset: 4 -*-
+#
+# This is free software;  you can redistribute it and/or modify it
+# under the  terms of the  GNU General Public License  as published by
+# the Free Software Foundation in version 2.  check_mk is  distributed
+# in the hope that it will be useful, but WITHOUT ANY WARRANTY;  with-
+# out even the implied warranty of  MERCHANTABILITY  or  FITNESS FOR A
+# PARTICULAR PURPOSE. See the  GNU General Public License for more de-
+# tails. You should have  received  a copy of the  GNU  General Public
+# License along with GNU Make; see the file  COPYING.  If  not,  write
+# to the Free Software Foundation, Inc., 51 Franklin St,  Fifth Floor,
+# Boston, MA 02110-1301 USA.
+#
+# rewrite of the original checkpoint_connections check from check_mk
+#
+# Author: Th.L.
+# Date  : 2018-03-17
+#
+# added connection statistic details for tcp/udp/icmp/other .....
+#
+# 29.05.208 : added connection limit (fwConnTableLimit)
+#
+
+checkpoint_connections_default_levels = (40000, 50000)
+
+
+def inventory_checkpoint_connections(info):
+    return [(None, 'checkpoint_connections_default_levels')]
+
+
+def check_checkpoint_connections(item, params, info):
+    fwConnectionsStat, fwpolicystat = info
+
+    fwConnectionsTcp, fwConnectionsUdp, fwConnectionsIcmp, fwConnectionsOther, fwConnections, fwConnectionRate = fwConnectionsStat[0]
+    fwNumConn, fwPeakNumConn, fwConnTableLimit = fwpolicystat[0]
+
+    now_time = time.time()
+
+    fwConnectionsTcp = get_rate('checkpoint_connections.%s.%s' % ('fwConnectionsTcp', item), now_time, int(fwConnectionsTcp), onwrap=SKIP)
+    fwConnectionsUdp = get_rate('checkpoint_connections.%s.%s' % ('fwConnectionsUdp', item), now_time, int(fwConnectionsUdp), onwrap=SKIP)
+    fwConnectionsIcmp = get_rate('checkpoint_connections.%s.%s' % ('fwConnectionsIcmp', item), now_time, int(fwConnectionsIcmp), onwrap=SKIP)
+    fwConnectionsOther = get_rate('checkpoint_connections.%s.%s' % ('fwConnectionsOther', item), now_time, int(fwConnectionsOther), onwrap=SKIP)
+    fwConnections = get_rate('checkpoint_connections.%s.%s' % ('fwConnections', item), now_time, int(fwConnections), onwrap=SKIP)
+    fwConnectionRate = int(fwConnectionRate)
+
+    fwNumConn = int(fwNumConn)
+    fwPeakNumConn = int(fwPeakNumConn)
+    fwConnTableLimit = int (fwConnTableLimit)
+
+    warn, crit = params
+
+    perfdata = [('fwconnectionstcp', fwConnectionsTcp),
+                ('fwconnectionsudp', fwConnectionsUdp),
+                ('fwconnectionsicmp', fwConnectionsIcmp),
+                ('fwconnectionsother', fwConnectionsOther),
+                ('fwconnections', fwConnections),
+                ('connections', fwNumConn, warn, crit, 0, fwConnTableLimit),
+                ('fwpeaknumconn', fwPeakNumConn)
+                ]
+
+    state = 0
+    infotext = ''
+    infotext += '%d current' % fwNumConn
+    infotext += ', %d peak' % fwPeakNumConn
+    infotext += ', %d table limit' % fwConnTableLimit
+    infotext += ', %d rate' % fwConnectionRate
+
+    if fwConnections >= crit:
+        state = 2
+    elif fwConnections >= warn:
+        state = 1
+
+    if state > 0:
+        infotext += ' (warn/crit at %d/%d)' % (warn, crit)
+
+    return state, infotext, perfdata
+
+
+check_info['checkpoint_connections'] = {
+    'check_function'     : check_checkpoint_connections,
+    'inventory_function' : inventory_checkpoint_connections,
+    'service_description': 'Connections',
+    'has_perfdata'       : True,
+    'group'              : 'checkpoint_connections',
+    #'snmp_scan_function': lambda oid: oid('.1.3.6.1.2.1.1.2.0') in ['.1.3.6.1.4.1.2620.1.6.123.1.67',  # ClusterXL Gateway
+    #                                                                '.1.3.6.1.4.1.2620.1.6.123.1.65',  # Appliance
+    #                                                                '.1.3.6.1.4.1.2620.1.6.123.1.64',  # VSX Gateway
+    #                                                                '.1.3.6.1.4.1.2620.1.6.123.1.62',  # Gateway
+    #                                                                '.1.3.6.1.4.1.2620.1.6.123.1.49',  # R77.30 Gateway
+    #                                                                '.1.3.6.1.4.1.2620.1.6.123.1.48',  # Mgmt
+    #                                                                '.1.3.6.1.4.1.8072.3.2.10']        # Virtual System (Linux),
+    'snmp_scan_function': lambda oid: (oid('.1.3.6.1.2.1.1.2.0').startswith('.1.3.6.1.4.1.2620.1.6.123.1') or
+                                       oid('.1.3.6.1.2.1.1.2.0') in ['.1.3.6.1.4.1.8072.3.2.10',])        # Virtual System (Linux)
+                                       and oid('.1.3.6.1.4.1.2620.1.1.26.11.1.0'),  # CHECKPOINT-MIB::fwConnectionsStatConnectionsTcp.0
+    'snmp_info'          : [('.1.3.6.1.4.1.2620.1.1.26.11', [
+                             '1',  # fwConnectionsStatConnectionsTcp
+                             '2',  # fwConnectionsStatConnectionsUdp
+                             '3',  # fwConnectionsStatConnectionsIcmp
+                             '4',  # fwConnectionsStatConnectionsOther
+                             '5',  # fwConnectionsStatConnections
+                             '6',  # fwConnectionsStatConnectionRate
+                             ]),
+                            ('.1.3.6.1.4.1.2620.1.1.25', [  # CHECKPOINT-MIB::fwPolicyStat
+                             '3',   # fwNumConn
+                             '4',   # fwPeakNumConn
+                             '10',  # fwConnTableLimit
+                             ])
+                            ]
+}

packages/checkpoint_connections

+{'author': u'Th.L. (thl-cmk[at]outlook[dot]com)',
+ 'description': u'Monitor Check Point Firewall connection statistics.\n\nRewrite of the original check.\nAdded perfdata for peak connections and TCP, UDP, ICMP, other and total connection rate\n',
+ 'download_url': 'https://thl-cmk.hopto.org',
+ 'files': {'checks': ['checkpoint_connections'],
+           'web': ['plugins/metrics/checkpoint_connections.py']},
+ 'name': 'checkpoint_connections',
+ 'num_files': 2,
+ 'title': u'Check Point Connections',
+ 'version': '20180731.v.0.0.1',
+ 'version.min_required': '1.2.8b8',
+ 'version.packaged': '1.4.0p35'}
\ No newline at end of file

web/plugins/metrics/checkpoint_connections.py

+#!/usr/bin/python
+# -*- encoding: utf-8; py-indent-offset: 4 -*-
+#
+# Check Point Firewall connections metrics plugins
+# checkpoint_connections
+
+#
+# Author: Th.L.
+# Date  : 2018-03-17
+#
+
+#####################################################################################################################
+#
+# define units for perfdata
+#
+#####################################################################################################################
+
+#####################################################################################################################
+#
+# define metrics for perfdata
+#
+#####################################################################################################################
+
+metric_info['checkpoint_connections_fwconnectionstcp'] = {
+    'title': _('TCP connections'),
+    'unit': '1/s',
+    'color': '11/a',
+}
+metric_info['checkpoint_connections_fwconnectionsudp'] = {
+    'title': _('UDP connections'),
+    'unit': '1/s',
+    'color': '21/a',
+}
+metric_info['checkpoint_connections_fwconnectionsicmp'] = {
+    'title': _('ICMP connections'),
+    'unit': '1/s',
+    'color': '31/a',
+}
+metric_info['checkpoint_connections_fwconnectionsother'] = {
+    'title': _('Other connections'),
+    'unit': '1/s',
+    'color': '41/a',
+}
+metric_info['checkpoint_connections_fwconnections'] = {
+    'title': _('Total connections'),
+    'unit': '1/s',
+    'color': '32/a',
+}
+metric_info['checkpoint_connections_fwconnectionrate'] = {
+    'title': _('Connections rate'),
+    'unit': '1/s',
+    'color': '42/a',
+}
+
+metric_info['checkpoint_connections_connections'] = {
+    'title': _('Current connections'),
+    'unit': 'count',
+    'color': '13/a',
+}
+metric_info['checkpoint_connections_fwpeaknumconn'] = {
+    'title': _('Peak Connections'),
+    'unit': 'count',
+    'color': '23/a',
+}
+
+
+######################################################################################################################
+#
+# map perfdata to metric
+#
+######################################################################################################################
+
+
+check_metrics['check_mk-checkpoint_connections'] = {
+    'fwconnectionstcp': {'name': 'checkpoint_connections_fwconnectionstcp', },
+    'fwconnectionsudp': {'name': 'checkpoint_connections_fwconnectionsudp', },
+    'fwconnectionsicmp': {'name': 'checkpoint_connections_fwconnectionsicmp', },
+    'fwconnectionsother': {'name': 'checkpoint_connections_fwconnectionsother', },
+    'fwconnections': {'name': 'checkpoint_connections_fwconnections', },
+    'fwconnectionrate': {'name': 'checkpoint_connections_fwconnectionrate', },
+    'connections': {'name': 'checkpoint_connections_connections', },
+    'fwpeaknumconn': {'name': 'checkpoint_connections_fwpeaknumconn', },
+}
+
+######################################################################################################################
+#
+# how to graph perdata
+#
+######################################################################################################################
+
+graph_info.append({
+    'title': _('Check Point Firewall Connections per second'),
+    'metrics': [
+        ('checkpoint_connections_fwconnectionsother', 'stack'),
+        ('checkpoint_connections_fwconnectionsicmp', 'stack'),
+        ('checkpoint_connections_fwconnectionsudp', 'stack'),
+        ('checkpoint_connections_fwconnectionstcp', 'stack'),
+        ('checkpoint_connections_fwconnections', 'line'),
+    ],
+})
+
+graph_info.append({
+    'title': _('Check Point Firewall Connections count'),
+    'metrics': [
+        ('checkpoint_connections_fwpeaknumconn', 'line'),
+        ('checkpoint_connections_connections', 'line'),
+    ],
+    'scalars': [
+        ('checkpoint_connections_connections:crit', _('crit')),
+        ('checkpoint_connections_connections:warn', _('warn')),
+    ],
+})
+
+
+######################################################################################################################
+#
+# define perf-o-meter
+#
+######################################################################################################################
+
+
+perfometer_info.append(('stacked', [
+    {
+        'type': 'logarithmic',
+        'metric': 'checkpoint_connections_connections',
+        'half_value': 100000.0,
+        'exponent': 2,
+    },
+    {
+        'type': 'logarithmic',
+        'metric': 'checkpoint_connections_fwconnections',
+        'half_value': 1000.0,
+        'exponent': 2,
+    },
+]))
