README.md 0 → 100644
+ 19
− 0
View file @ c72a7d7d
# Soft RAID
Monitors status of Check Point soft RAID
Check Info:
* *service*: creates one service per RAID volume
* *state*: **Critical** if raidVolumeState is not optimal or raidDiskState is not online
* *wato*: none
* *perfdata*: Syncstatus of the hard discs in %
Testetd with: 23800, 15600 appliances
**Note: check with your hardware manual the disk id and disk placement (upper/lower)**

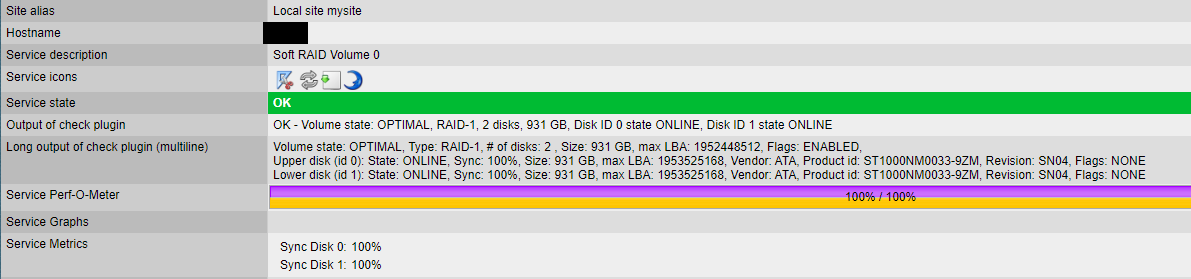

Sample output
![sample output](/doc/sample.png?raw=true "sample Soft RAID check output (check details)")
checkpoint_soft_raid.mkp 0 → 100644
+ 0
− 0
View file @ c72a7d7d
File added
checks/checkpoint_soft_raid 0 → 100644
+ 302
− 0
View file @ c72a7d7d
#!/usr/bin/python
# -*- encoding: utf-8; py-indent-offset: 4 -*-
#
# 31.05.2016 : Th.L. : monitor Check Point appliance soft RAID
# 08.03.2018 : Th.L. : changed snmp scan function
# 13.03.2018 : Th.L. : code cleanup
# 15.03.2018 : Th.L. : more code cleanup
#
# sample snmpwalk (one volume / two disks)
#
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.1.1.0 = INTEGER: 1
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.2.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.3.1.0 = INTEGER: 2
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.4.1.0 = INTEGER: 2
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.5.1.0 = INTEGER: 1952448512
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.6.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.7.1.0 = INTEGER: 1
# .1.3.6.1.4.1.2620.1.6.7.7.1.1.8.1.0 = Gauge32: 931
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.1.1.0 = INTEGER: 1
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.1.2.0 = INTEGER: 2
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.2.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.2.2.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.3.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.3.2.0 = INTEGER: 1
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.4.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.4.2.0 = INTEGER: 1
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.5.1.0 = STRING: "ATA "
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.5.2.0 = STRING: "ATA "
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.6.1.0 = STRING: "ST1000NM0033-9ZM"
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.6.2.0 = STRING: "ST1000NM0033-9ZM"
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.7.1.0 = STRING: "SN04"
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.7.2.0 = STRING: "SN04"
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.8.1.0 = INTEGER: 1953525168
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.8.2.0 = INTEGER: 1953525168
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.9.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.9.2.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.10.1.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.10.2.0 = INTEGER: 0
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.11.1.0 = INTEGER: 100
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.11.2.0 = INTEGER: 100
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.12.1.0 = Gauge32: 931
# .1.3.6.1.4.1.2620.1.6.7.7.2.1.12.2.0 = Gauge32: 931
#
#
# sample info
#
# [[[u'1', u'0', u'2', u'2', u'1952448512', u'0', u'1', u'931']],
# [[u'1', u'0', u'0', u'0', u'ATA ', u'ST1000NM0033-9ZM', u'SN04', u'1953525168', u'0', u'0', u'100', u'931'],
# [u'2', u'0', u'1', u'1', u'ATA ', u'ST1000NM0033-9ZM', u'SN04', u'1953525168', u'0', u'0', u'100', u'931']]]
#
#
factory_settings['checkpoint_soft_raid_defaults'] = {
}
def parse_checkpoint_soft_raid(info):
raidvolumetype = {
0 : 'RAID-0',
1 : 'RAID-1E',
2 : 'RAID-1',
3 : 'RAID_10',
4 : 'RAID-4',
5 : 'RAID-5',
6 : 'RAID-6',
7 : 'RAID-60',
8 : 'RAID-50',
}
raw_volumes, raw_disks = info
volumes = []
disks = []
for volume in raw_volumes:
volumeindex, volumeid, volumetype, numofdisksonraid, volumemaxlba, volumestate, volumeflags, volumesize = volume
if volumeindex.isdigit():
volumes.append({'volumeindex' : int(volumeindex),
'volumeid' : int(volumeid),
'volumetype' : raidvolumetype.get(int(volumetype)),
'numofdisksonraid': int(numofdisksonraid),
'volumemaxlba' : int(volumemaxlba),
'volumestate' : int(volumestate),
'volumeflags' : volumeflags,
'volumesize' : int(volumesize),
})
for disk in raw_disks:
diskindex, diskvolumeid, diskid, disknumber, diskvendor, diskproductid, diskrevision, diskmaxlba, diskstate, \
diskflags, disksyncstate, disksize = disk
if diskindex.isdigit():
disks.append({'diskindex' : int(diskindex),
'diskvolumeid' : int(diskvolumeid),
'diskid' : int(disknumber),
'diskvendor' : diskvendor,
'diskproductid': diskproductid,
'diskrevision' : diskrevision,
'diskmaxlba' : int(diskmaxlba),
'diskstate' : int(diskstate),
'diskflags' : diskflags,
'disksyncstate': int(disksyncstate),
'disksize' : int(disksize)
})
parse = [volumes, disks]
return parse
def inventory_checkpoint_soft_raid(parse):
volumes, disks = parse
disksonvolume = []
if len(volumes) != 0:
for volume in volumes:
volumeid = volume.get('volumeid')
item = 'Volume %d' % volumeid
for disk in disks:
if disk.get('diskvolumeid') == volumeid:
disksonvolume.append(disk)
disks.remove(disk)
yield item, [volume, disksonvolume]
else:
return
def check_checkpoint_soft_raid(item, params, parse):
raidvolumestate = {
0: 'OPTIMAL',
1: 'DEGRADED',
2: 'FAILED',
}
raidvolumeflags = {
0 : 'NONE',
1 : 'ENABLED',
2 : 'QUIESCED',
3 : 'RESYNC IN PROGRESS',
4 : 'VOLUME INACTIVE',
5 : 'NOT CONFIGURED',
6 : 'USING INTERIM RECOVERY MODE',
7 : 'READY FOR RECOVERY OPERATION',
8 : 'WRONG PHYSICAL DRIVE WAS REPLACED',
9 : 'A PHYSICAL DRIVE IS NOT PROPERLY CONNECTED',
10: 'HARDWARE IS OVER HEATING',
11: 'HARDWARE WAS OVERHEATED',
12: 'CURRENTLY EXPENDING',
13: 'NOT YET AVAILABLE',
14: 'QUEUED FOR EXPENSION',
15: 'MIGRATING',
16: 'IMPACTED',
17: 'OFFLINE',
18: 'CLEARING',
}
raiddiskstate = {
0 : 'ONLINE',
1 : 'MISSING',
2 : 'NOT COMPATIBLE',
3 : 'DISC FAILED',
4 : 'INITIALIZING',
5 : 'OFFLINE REQUESTED',
6 : 'FAILED REQUESTED',
7 : 'UNCONFIGURED GOOD SPUN UP',
8 : 'UNCONFIGURED GOOD SPUN DOWN',
9 : 'UNCONFIGURED BAD',
10 : 'HOTSPARE',
11 : 'DRIVE OFFLINE',
12 : 'REBUILD',
13 : 'FAILED',
14 : 'COPYBACK',
255: 'OTHER OFFLINE',
}
raiddiskflags = {
0: 'NONE',
1: 'OUT OF SYNC',
2: 'QUIESCED',
3: 'VERIFYING',
4: 'READY',
}
raiddiskid = {
0: 'Upper',
1: 'Lower',
}
def getflags(flags, flags_description):
description = ''
flags = int(flags)
if flags == 0:
return flags_description.get(0)
else:
for x in range(0, len(flags_description)):
if flags & (1 << x) != 0:
if flags_description.get(x + 1) is not None:
description += '%s,' % flags_description.get(x + 1)
return description
volumes, disks = parse
disksonvolume = []
state = 0
infotext = ''
longoutput = ''
perfdata = []
if len(volumes) != 0:
for volume in volumes:
volumeid = volume.get('volumeid')
if item == "Volume %d" % volumeid:
for disk in disks:
if disk.get('diskvolumeid') != volumeid:
disks.remove(disk)
# volume infos
if volume.get('volumestate') != 0:
yield 2, 'Volume state %s' % raidvolumestate.get(volume.get('volumestate'))
else:
infotext += 'Volume state: %s, ' % raidvolumestate.get(volume.get('volumestate'))
infotext += '%s, ' % volume.get('volumetype')
infotext += '%d disks, ' % volume.get('numofdisksonraid')
infotext += '%d GB, ' % volume.get('volumesize')
longoutput += '\nVolume state: %s, ' % raidvolumestate.get(volume.get('volumestate'))
longoutput += 'Type: %s, ' % volume.get('volumetype')
longoutput += '# of disks: %d , ' % volume.get('numofdisksonraid')
longoutput += 'Size: %d GB, ' % volume.get('volumesize')
longoutput += 'max LBA: %d, ' % volume.get('volumemaxlba')
longoutput += 'Flags: %s' % getflags(volume.get('volumeflags'), raidvolumeflags)
# disk infos
for disk in disks:
diskid = disk.get('diskid')
syncstate = disk.get('disksyncstate')
if disk.get('diskstate') != 0:
yield 2, 'Disk ID: %d state: %s' % (diskid, raiddiskstate.get(disk.get('diskstate')))
else:
infotext += 'Disk ID %d state %s, ' % (diskid, raiddiskstate.get(disk.get('diskstate')))
longoutput += '\n%s disk (id %d): ' % (raiddiskid.get(diskid), diskid)
longoutput += 'State: %s, ' % raiddiskstate.get(disk.get('diskstate'))
longoutput += 'Sync: %d%s, ' % (syncstate, '%')
longoutput += 'Size: %d GB, ' % disk.get('disksize')
longoutput += 'max LBA: %d, ' % disk.get('diskmaxlba')
longoutput += 'Vendor: %s, ' % disk.get('diskvendor')
longoutput += 'Product id: %s, ' % disk.get('diskproductid')
longoutput += 'Revision: %s, ' % disk.get('diskrevision')
longoutput += 'Flags: %s' % getflags(disk.get('diskflags'), raiddiskflags)
perfdata.append(('disk_id_%d' % diskid, syncstate, None, None, 0, 100))
# remove last ', '
infotext = infotext[:-2]
yield state, infotext + longoutput, perfdata
check_info['checkpoint_soft_raid'] = {
'check_function' : check_checkpoint_soft_raid,
'inventory_function' : inventory_checkpoint_soft_raid,
'parse_function' : parse_checkpoint_soft_raid,
'default_levels_variable' : 'checkpoint_soft_raid_defaults',
'service_description' : 'Soft RAID',
'group' : 'cp_soft_raid',
'has_perfdata' : True,
#'snmp_scan_function': lambda oid: oid('.1.3.6.1.2.1.1.2.0') in ['.1.3.6.1.4.1.2620.1.6.123.1.67', # ClusterXL Gateway
# '.1.3.6.1.4.1.2620.1.6.123.1.65', # Appliance
# '.1.3.6.1.4.1.2620.1.6.123.1.64', # VSX Gateway
# '.1.3.6.1.4.1.2620.1.6.123.1.62', # Gateway
# '.1.3.6.1.4.1.2620.1.6.123.1.49', # R77.30 Gateway
# '.1.3.6.1.4.1.2620.1.6.123.1.48', # Mgmt
'snmp_scan_function': lambda oid: oid('.1.3.6.1.2.1.1.2.0').startswith('.1.3.6.1.4.1.2620.1.6.123.1'),
'snmp_info' : [('.1.3.6.1.4.1.2620.1.6.7.7.1.1', [ # CHECKPOINT-MIB::raidVolumeEntry
'1', # raidVolumeIndex
'2', # raidVolumeID
'3', # raidVolumeType
'4', # numOfDisksOnRaid
'5', # raidVolumeMaxLBA
'6', # raidVolumeState
'7', # raidVolumeFlags
'8', # raidVolumeSize
]),
('.1.3.6.1.4.1.2620.1.6.7.7.2.1', [ # CHECKPOINT-MIB::raidDiskEntry
'1', # raidDiskIndex
'2', # raidDiskVolumeID
'3', # raidDiskID
'4', # raidDiskNumber
'5', # raidDiskVendor
'6', # raidDiskProductID
'7', # raidDiskRevision
'8', # raidDiskMaxLBA
'9', # raidDiskState
'10', # raidDiskFlags
'11', # raidDiskSyncState
'12', # raidDiskSize
])],
}
doc/.gitkeep 0 → 100644
+ 0
− 0
View file @ c72a7d7d
doc/sample.png 0 → 100644
+ 0
− 0
View file @ c72a7d7d
doc/sample.png

29.8 KiB

packages/checkpoint_soft_raid 0 → 100644
+ 12
− 0
View file @ c72a7d7d
{'author': u'Th.L. (thl-cmk[at]outlook[dot]com)',
'description': u'monitor Check Point appliance soft RAID\n',
'download_url': 'http://thl-cmk.hopto.org/',
'files': {'checks': ['checkpoint_soft_raid'],
'web': ['plugins/metrics/checkpoint_soft_raid.py']},
'name': 'checkpoint_soft_raid',
'num_files': 2,
'title': u'Check Point appliance soft RAID',
'version': '20180731.v0.2b',
'version.min_required': '1.2.8b8',
'version.packaged': '1.4.0p35'}
\ No newline at end of file
web/plugins/metrics/checkpoint_soft_raid.py 0 → 100644
+ 80
− 0
View file @ c72a7d7d
#!/usr/bin/python
# -*- encoding: utf-8; py-indent-offset: 4 -*-
#
# Check Point soft RAID metrics plugin
#
# Author: Th.L.
# Date : 2018-04-11
#
#####################################################################################################################
#
# define units for perfdata
#
#####################################################################################################################
#####################################################################################################################
#
# define metrics for perfdata
#
#####################################################################################################################
metric_info['checkpoint_soft_raid_disk_id_0'] = {
'title': _('Sync Disk 0'),
'unit': '%',
'color': '11/a',
}
metric_info['checkpoint_soft_raid_disk_id_1'] = {
'title': _('Sync Disk 1'),
'unit': '%',
'color': '21/a',
}
######################################################################################################################
#
# map perfdata to metric
#
######################################################################################################################
check_metrics['check_mk-checkpoint_soft_raid'] = {
'disk_id_0': {'name': 'checkpoint_soft_raid_disk_id_0', },
'disk_id_1': {'name': 'checkpoint_soft_raid_disk_id_1', }
}
######################################################################################################################
#
# how to graph perdata
#
######################################################################################################################
graph_info.append({
'title': _('Check Point soft RAID sync status'),
'metrics': [
('checkpoint_soft_raid_disk_id_0', 'area'),
('checkpoint_soft_raid_disk_id_1', '-area'),
],
})
######################################################################################################################
#
# define perf-o-meter
#
######################################################################################################################
perfometer_info.append(('stacked', [
{
'type': 'linear',
'segments': ['checkpoint_soft_raid_disk_id_0',],
'total': 100,
},
{
'type': 'linear',
'segments': ['checkpoint_soft_raid_disk_id_1',],
'total': 100,
}
]))
\ No newline at end of file
0% or .
You are about to add 0 people to the discussion. Proceed with caution.
Finish editing this message first!
Please register or to comment

Collection of CheckMK checks (see https://checkmk.com/). All checks and plugins are provided as is. Absolutely no warranty. Send any comments to thl-cmk[at]outlook[dot]com
